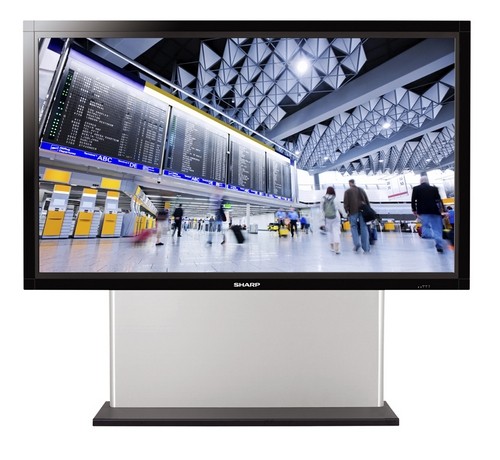

Conference Room Solutions LB-1085
Surprising performance - the world's largest 108" class LCD for professional use.
With exceptional size and quality, the Sharp 108" class LCD redefines the possibilities of LCDs.
LCDs take another step forward to lead the world. A 108" class LCD monitor with breathtakingly large screen that satisfies all your demands with its full 1080P High-Definition Sharp LCD panel. The ASV low-reflective black TFT LCD monitor with high-brightness, high-contrast feature enables outstanding moving images as well as high-visibility data displays. With a durable design, capable of withstanding 24/7 non-stop operation, the Sharp 108" class LCD also benefits from a low power-consumption that is only possible with LCD monitor. This truly next generation display screen remains beautiful while catering for the harsh conditions of business and professional use.
- Extreme size LCD Panel
- Full High-Definition
- ASV Low-Reflective Black TFT LCD
- High-Brightness, High-Contrast
- Fan-less Design
- 24/7 operation
- Versatile PC and AV Interfaces
- AV Mode
- Maximum Colour Display: 758 million
- Brightness Sensor
- Active Contrast
- Quick Shoot Function
A resolution of 1920 pixels horizontal and 1080 pixels vertical allows for a staggering amount of content, either moving or still, to be displayed in great detail and, in conjunction with a clever high-brightness, high-contrast feature, the panel can even be viewed clearly in bright environments, providing an impressive field of vision.
Colours are reproduced with outstanding accuracy, whilst a'quick shoot function' suppresses ghosting in swift-motion scenes for even greater clarity.
| Model | LB-1085 | |
| Installation | Landscape | |
| LCD Panel | 108" class Wide-screen, Diagonal 2,732.7 mm | |
| Maximum resolution | 1,920 x 1,080 pixels | |
| Max. Display Colours | Aprox. 758 million colours | |
| Pixel Pitch | H 1.2405 x V 1.2405 mm | |
| Maximum Brightness | 400 cd/m2 | |
| Contrast Ratio | 1,200 : 1 | |
| Viewing Angle (H/V) | 176º / 176º (contrast = 10) | |
| Screen Size | 2,381.7 mm x 1,339.7 mm | |
| Response Time | 6 ms (Gray to Gray, Avg.) | |
| Computer Input | Video | Analog RGB, Digital (DVI 1.0) |
| Plug & Play | VESA DDC2B | |
| Power management | Not supported | |
| Video Colour System | NTSC (3.58 Mhz), PAL | |
| Input Terminal | PC/AV Video | DVI-I 29-pin 1 channel |
| PC/AV Audio | 3.5 mm mini stereo jack 1 channel | |
| Serial | RS-232C (D-sub 9-pin x 1) | |
| HDMI | 3 channels | |
| Video | 2 channels | |
| S-Video | 1 channel | |
| Component | 2 channels | |
| Audio | RCA (L/R 4 channels) | |
| Output Terminals | Audio | RCA (L/R 1 channel) |
| Speakers | Speaker output 15W + 15W (4?) | |
| Power Supply | AC 200V - 240V, 50/60Hz | |
| Environmental conditions | Operating Temperature | 0ºC to 40º C |
| Operating Humidity | 20% to 80% RH (No condensation) | |
| Dimensions (excluding stand) | 2,572 mm x 204 mm x 1,550 mm (W x D x H) | |
| Weight | Approx 195 kg (excluding stand) | |
| Packaging Dimensions | 2,755 mm x 745 mm x 2020 mm (W x D x H) | |
| Main Accessories | AC power cord, remote controllerand batteries, operating manual, bolt caps power cord holder. | |
