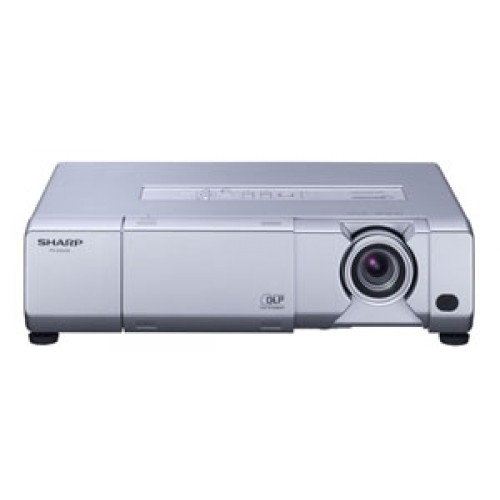

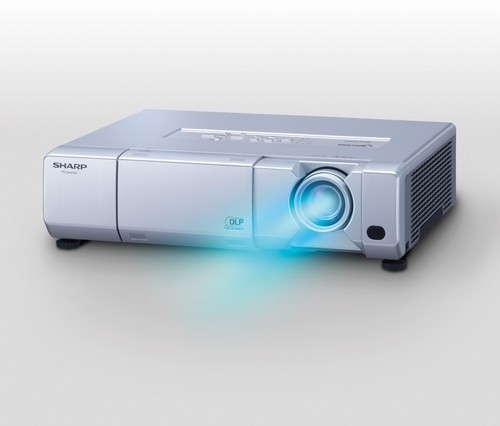

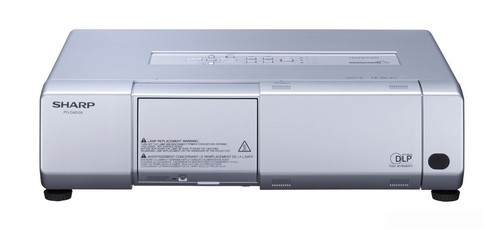

Conference Room Solutions PG-D4010X
High Brightness DLP Projector with BrilliantColour Technology Provides Enhanced Convenience and Reliability as Well as Superb Performance
-
XGA (1,024 x 768) DLP chip mounted for high resolution images viewing up to UXGA (1,600 x 1,200), compatible in Intelligent Compression System
-
4,200 ANSI Lumens high brightness enables high qulaity crystal clear projection even in a bright room
-
Rich and vibrant colour reproduction with BrilliantColour Technology and six-segment colour wheel (RGBWCY)
-
Full digital projection with DVI-I terminal
-
High output stereo speakers 10W (5W x 2)
-
Direct power off and auto restart
-
Designed for easy mobility with slide lens cover and side carry handle
-
Kensington security standard connector and security bar for theft prevention
-
Superb dust resistance and reduced maintenance with DLP dealed optical system and filter-free design
-
Remote control with presentation assist functions (page up/down, GUI pointer, spotlight and mouse control
|
Display device |
0.7" DLP chip x 1 |
|
|
Resolution |
XGA (1024 x 768) |
|
|
Brightness |
4,200 ANSI lumens |
|
|
Contrast ratio |
2,500:1 |
|
|
Lens |
F number |
F 2.5 – 2.7 |
|
Zoom |
Manual, x1.15 (f = 21.0 – 24.2mm) |
|
|
Focus |
Manual |
|
|
Picture size |
40" (102 cm) to 500" (1270 cm) |
|
|
Projection distance |
40": 1.2 – 1.4 m, 100": 3.0 – 3.4 m, 500": 14.9 m |
|
|
Input signals |
Computer RGB |
UXGA*1*2,WSXGA+*1*2, SXGA+*1, SXGA*1, WXGA*1, XGA, SVGA, VGA Mac 21", 19", 16", 13" |
|
DTV |
1080p / 1080i / 720p / 576p / 576i / 540p / 480p / 480i NTSC / PAL / SECAM |
|
|

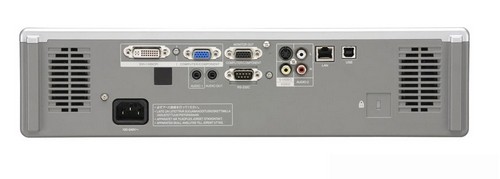

Input terminals |
DVI-I (RGB / HDCP) |
x 1 |
|
Computer / Component (mini D-sub 15 pin) |
x 1 |
|
|
S-Video (mini DIN 4 pin) |
x 1 |
|
|
Video (RCA) |
x 1 |
|
|
Audio (f3.5mm stereo mini jack) |
x 1 |
|
|
Audio (RCA) |
x 1 (L/R) |
|
|
Output terminals |
Computer / Component (mini D-sub 15 pin) |
x 1 |
|
Audio (f3.5mm stereo mini jack) |
x 1 (variable audio output) |
|
|
Control and communication terminals |
LAN (RJ-45) |
x 1 |
|
USB (type B) |
x 1 |
|
|
RS-232 (mini DIN 9pin) |
x 1 |
|
|
Horizontal frequency |
15 – 110 kHz |
|
|
Vertical frequency |
45 – 85 Hz |
|
|
Speaker |
5 W x 2 (stereo) |
|
|
Fan noise |
35 dB (Bright), 30 dB (Eco+Quiet) |
|
|
Projection lamp |
330 W |
|
|
Lamp life |
3,000 hrs (Eco+Quiet) |
|
|
Replacement lamp |
AND400LP |
|
|
On-screen display languages |
English, German, Spanish, Dutch, French, Italian, Swedish, Portuguese, Russian, Polish, Hungarian, Turkish, Arabic, Persian, simplified Chinese, Korean, Japanese |
|
|
Rated voltage |
AC 100-240 V |
|
|
Rated frequency |
50/60 Hz |
|
|
Input current |
4.5 A |
|
|
Power consumption (standby) |
408W (10.8W) with AC 240V |
|
|
Operation temperature |
+5o C to +35o C |
|
|
Cabinet |
Plastic |
|
|
Dimensions (main body) [W x H x D] |
400 x 100 x 335 mm |
|
|
Weight (approx.) |
5.8 kg |
|
|
Supplied accessories |
Remote control, Two R-6 batteries, Power cord (1.8m), RGB cable (3.0m), Operation Manual, CD-ROM |
|
